Product Details
xMWNKDS EVE 3.2V 105Ah LiFePO4 Battery Cell
Grade A Prismatic Lithium Iron Phosphate Cell | 4000+ Cycles
Perfect for Energy Storage | Ideal for Solar / EV / RV / Golf Cart / Backup Power
The MWNKDS EVE 3.2V 105Ah LiFePO4 Battery Cell is a Grade A lithium iron phosphate prismatic cell designed for DIY battery pack building, solar energy storage, electric vehicles, electric boats, RV power systems, golf carts, inverters, household backup power, and other energy storage applications.
With 105Ah nominal capacity, 3.2V nominal voltage, ≤0.4mΩ low internal resistance, and 4000+ cycle life at 80% DOD, this battery cell provides stable output, long service life, and reliable performance for both DIY users and professional battery system builders.
It supports flexible combinations including 4S / 8S / 12S / 16S / 22S, making it suitable for 12V, 24V, 36V, 48V, and custom battery pack systems.
Key Features
105Ah High Capacity
The MWNKDS EVE 3.2V LiFePO4 cell provides 105Ah / 105000mAh nominal capacity, delivering stable energy storage for solar systems, EV projects, RV power, golf carts, inverters, electric boats, and backup power systems.
Approximate energy per cell:
3.2V × 105Ah = 336Wh
Key benefits:
High real capacity
Stable voltage platform
Reliable discharge output
Suitable for daily energy storage
Ideal for DIY 12V / 24V / 36V / 48V battery packs
Grade A EVE LiFePO4 Cell
This product uses Grade A EVE lithium iron phosphate battery cells, offering reliable quality, stable performance, and excellent consistency for battery pack assembly.
LiFePO4 chemistry is widely used in energy storage systems because of its safety, stability, long cycle life, and strong thermal performance.
4000+ Long Cycle Life
The battery cell supports more than 4000 cycles at 80% DOD under proper use conditions.
Advantages:
Longer service life
Lower replacement cost
Stable performance after repeated charge and discharge
Suitable for solar storage and backup power
Reliable choice for long-term battery systems
Low Internal Resistance ≤0.4mΩ
With internal resistance of ≤0.4mΩ, the battery cell helps improve power efficiency and reduce energy loss during operation.
Performance benefits:
More efficient charging and discharging
Lower energy loss
Stable current output
Reduced heat generation under proper use
Suitable for inverter, EV, RV, and solar storage systems
Strong Discharge Performance
The MWNKDS EVE 105Ah LiFePO4 cell supports both stable continuous output and short-term high-current discharge.
Performance data:
Recommended Constant Current: 50A / 0.5C
Max Continuous Discharge Current: 100A / 1C
Max Instantaneous Discharge Current: 300A / 3C
This makes it suitable for electric vehicles, electric boats, golf carts, power tools, inverters, RV systems, and backup power applications.

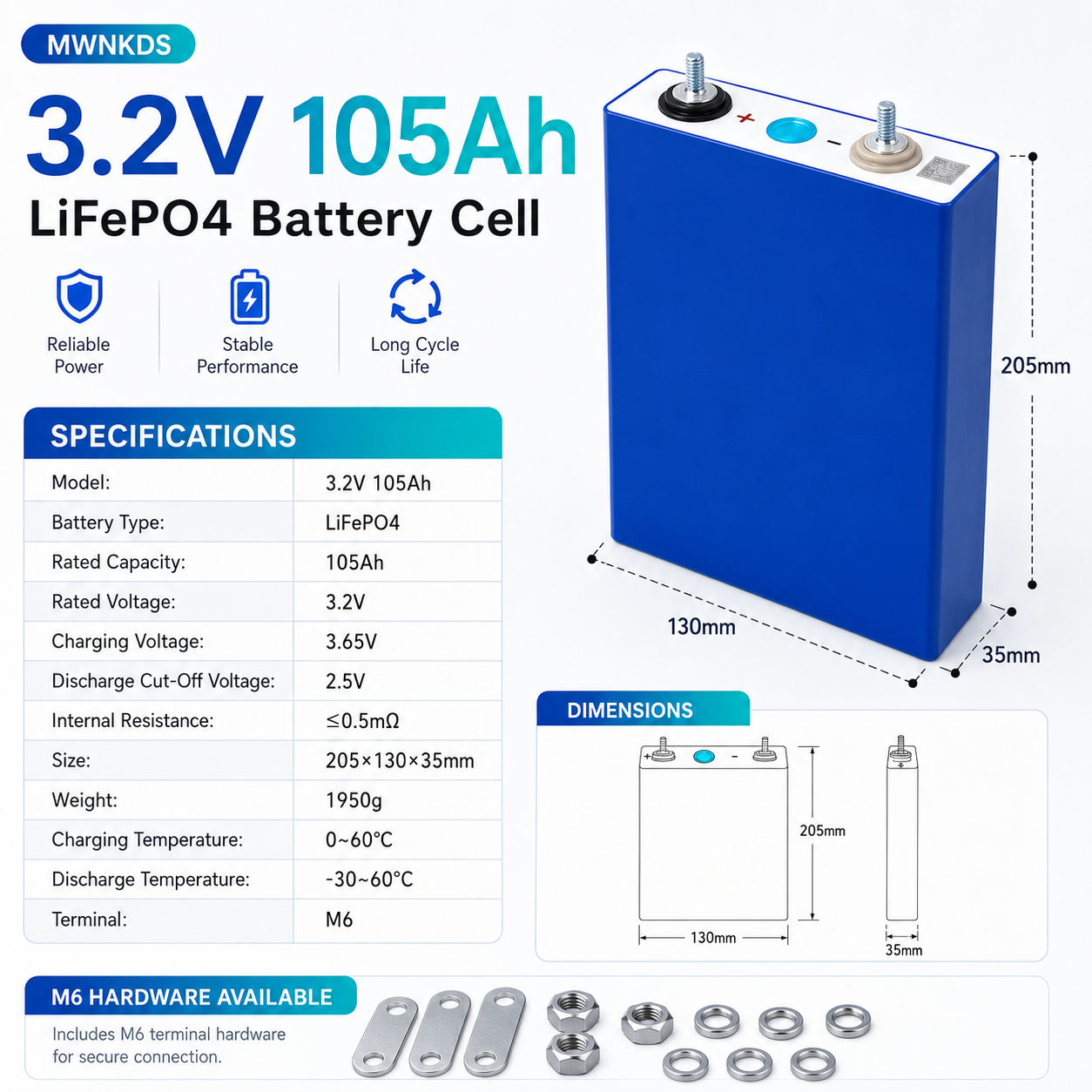

Product Specifications
| Item | Specification |
|---|---|
| Brand | MWNKDS |
| Cell Manufacturer | EVE |
| Product Type | Grade A LiFePO4 Battery Cell |
| Model | 3.2V 105Ah |
| Battery Type | LiFePO4 / Lithium Iron Phosphate |
| Nominal Capacity | 105Ah / 105000mAh |
| Nominal Voltage | 3.2V |
| Approx. Energy | 336Wh |
| Internal Resistance | ≤0.4mΩ |
| Cycle Life | 4000+ Cycles at 80% DOD |
| Combination | 4S / 8S / 12S / 16S / 22S |
| Recommended Constant Current | 50A / 0.5C |
| Charging Cut-off Voltage | 3.65V / cell |
| Discharge Cut-off Voltage | 2.5V / cell |
| Max Continuous Discharge Current | 100A / 1C |
| Max Instantaneous Discharge Current | 300A / 3C |
| Input Load Current | Standard 20A / Fast 40A |
| Charging Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Add Stud | Yes |
| Screw Type | M6 Screw |
| Weight | About 2kg |
| Size | 200 × 130 × 36mm |
| Applications | Solar, EV, RV, Golf Cart, Electric Boat, Inverter, DIY Battery Pack, Backup Power |

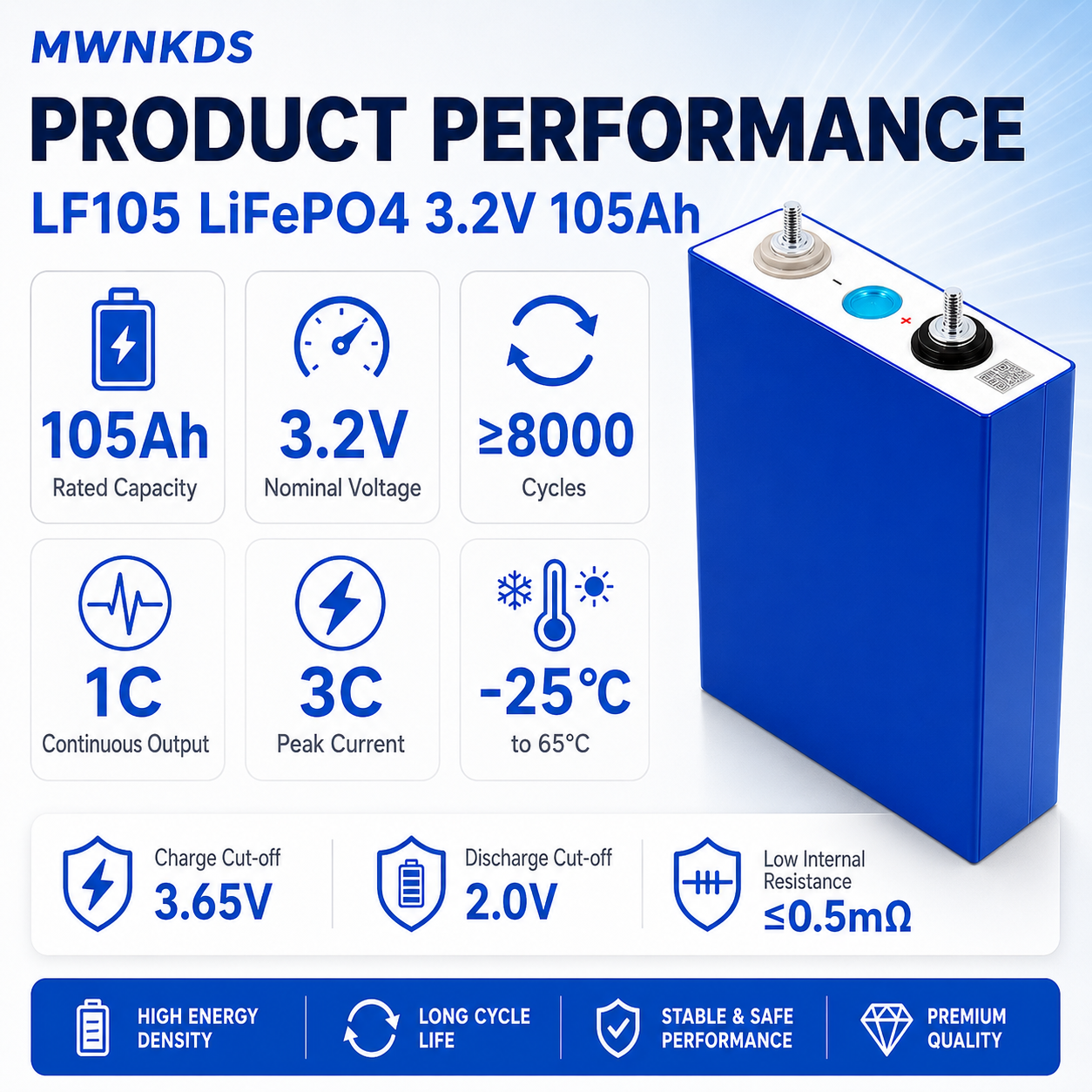

Product Performance Advantages
High Capacity in Compact Size
With 105Ah capacity and compact dimensions of 200 × 130 × 36mm, this battery cell is suitable for space-saving battery pack designs.
Flexible Battery Pack Combination
The cell supports flexible battery system design:
4S = 12V battery system
8S = 24V battery system
12S = 36V battery system
16S = 48V battery system
22S = custom high-voltage battery system
Please use a compatible BMS for safe charging, discharging, and cell balancing.
Strong Output for High-Power Applications
The battery supports 100A continuous discharge and 300A instantaneous discharge, making it suitable for high-current applications such as EV projects, electric boats, golf carts, power tools, inverters, and emergency power systems.
Package Includes
Shipping list:
MWNKDS EVE 3.2V 105Ah LiFePO4 Battery Cell × 1
M6 Screw × 1 Set
Copper Sheet × 1 Set
Insulation Board × 1 Set
Actual accessory quantity may vary depending on the selected package option. Please check the order option before purchase.
Important Notes Before Purchase
This product is a single LiFePO4 battery cell, not a complete battery pack.
To build a safe and functional battery system, you may need:
Compatible BMS
Copper sheets / busbars
Insulation board
Battery holder or case
Fuse and protection components
LiFePO4 charger
Inverter or solar controller
Correct wiring and balancing setup
Professional installation is recommended. Incorrect wiring, short circuit, overcharge, over-discharge, reverse polarity, or use without BMS may damage the battery or create safety risks.
Payment Information
We support secure payment through Shopify checkout.
Available payment methods may include:
Credit Card
Debit Card
PayPal
Shopify Payments
Apple Pay
Google Pay
Other local payment methods shown at checkout
All payment information is processed through secure encrypted payment channels.
Shipping Information
Safe Battery Packaging
Battery cells require careful packaging for transportation. We use protective packaging to help reduce impact, vibration, and transportation damage.
EU / US Tax-Free Shipping Option
EU / US tax-free shipping options may be available depending on the order, warehouse, destination, and checkout method. Please refer to the shipping option shown at checkout or contact customer service before placing bulk orders.
Battery Shipping
Lithium battery products may require special shipping channels depending on the destination country or region. Delivery time may vary based on logistics route, customs clearance, and local delivery service.
Tracking Information
After shipment, tracking information will be provided so customers can check order status online.
After-Sales Service
MWNKDS provides customer support for every order.
Our support includes:
Product consultation
Order status assistance
Shipping tracking support
Basic installation guidance
Battery parameter confirmation
Quality issue support
Replacement or refund assistance according to store policy
If the product arrives damaged or has a quality issue, please contact us with:
Order number
Clear photos or videos
Packaging photos
Voltage test data if available
Detailed issue description
After verification, we will provide a suitable solution according to the actual situation and store policy.
Warranty Notice
The battery cell must be used under recommended operating conditions and with a compatible LiFePO4 BMS.
The following situations may not be covered by warranty:
Short circuit
Reverse polarity connection
Overcharge or over-discharge
Water damage
Physical impact or deformation
Unauthorized disassembly
Incorrect series or parallel connection
Use without proper BMS protection
Damage caused by incompatible charger or inverter
Improper storage or installation
Please test and confirm the cell condition before assembling it into a battery pack.
FAQ
Q1: Is this a complete battery pack?
No. This product is a single 3.2V 105Ah LiFePO4 battery cell. To build a battery pack, you need a compatible BMS, busbars or copper sheets, wiring, charger, case, and protection accessories.
Q2: Can I build a 12V battery pack?
Yes. 4 cells in series can be used to build a 12V LiFePO4 battery system. A suitable 4S BMS is required.
Q3: Can I build 24V, 36V, or 48V systems?
Yes. 8S, 12S, and 16S configurations can be used for 24V, 36V, and 48V battery systems. Please use a matching BMS and charger.
Q4: What is the cycle life?
The battery cell supports 4000+ cycles at 80% DOD under proper operating conditions.
Q5: What is included in the package?
The package includes the battery cell, M6 screw, copper sheet, and insulation board.
Q6: What applications is it suitable for?
It is suitable for solar storage, EV projects, electric bicycles, scooters, golf carts, RV power, electric boats, power tools, inverters, LED lighting, medical instruments, emergency power, and DIY battery packs.
Final Selling Point
Build a reliable DIY battery system with the MWNKDS EVE 3.2V 105Ah LiFePO4 Battery Cell.
High capacity, stable performance, long cycle life, and wide compatibility make it ideal for solar storage, EV projects, RV power, golf carts, electric boats, inverters, and backup power.
MWNKDS Energy Storage Solutions — Reliable, Safe, Efficient.
